GEODEPL 2015 geotechnical software



Geodepl makes possible to predict the end of the consolidation from the measures



Integrating the methods of Asaoka, Recordon and Al-Shalrani, Geodepl takes into account simple and complex models



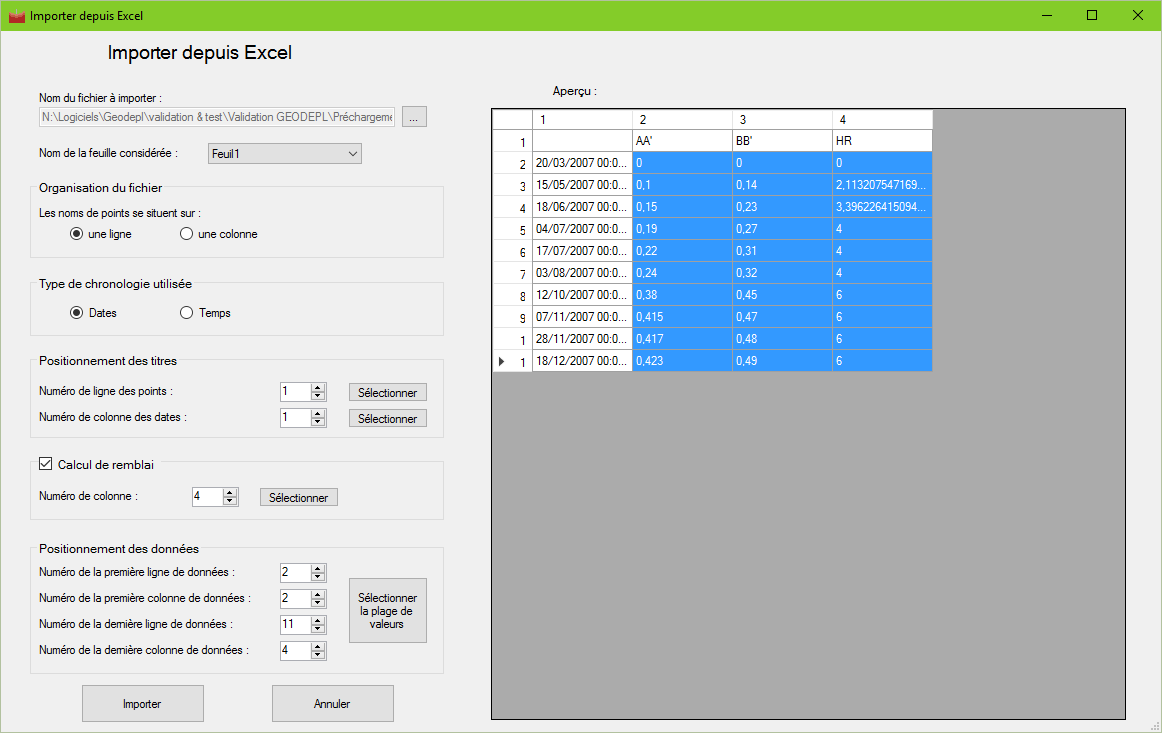

It is possible to import the data from a spreadsheet (Excel format or others …)



The user benefits of the assistance from an experienced design office

Tracking software

Determination of the final amplitude of primary settlement using several methods,
Estimation of residual settlement,
Forecast of when settlements will have reached a defined consolidation percentage,
Possibility of taking into account the secondary settlement.

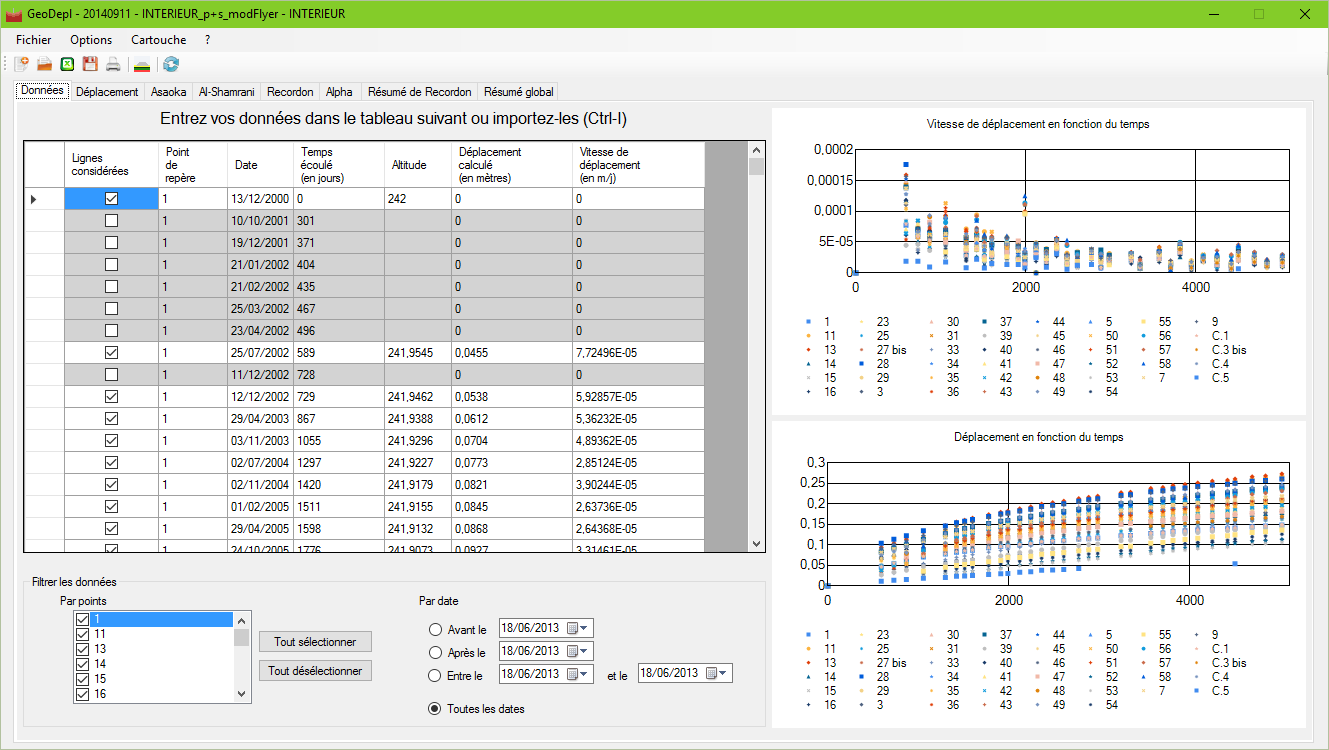

Possibility of introducing of several points of reference directly or via a spreadsheet and to easily navigate between them during their analysis,
Introduction to the choice of dates or elapsed time,
Introduction to the choice of altitudes or settlements values, according to the representative unit of your project,
Possibility to deactivate certain measurements for a finer analysis within a defined time range.

Synthesis for all the marks of the primary settlement amplitudes calculated according to the different methods and of the vertical consolidation coefficient Cv of the compressible layer,
Synthesis by point of the evolution of the final settlement as a function of the number of measurement points considered.

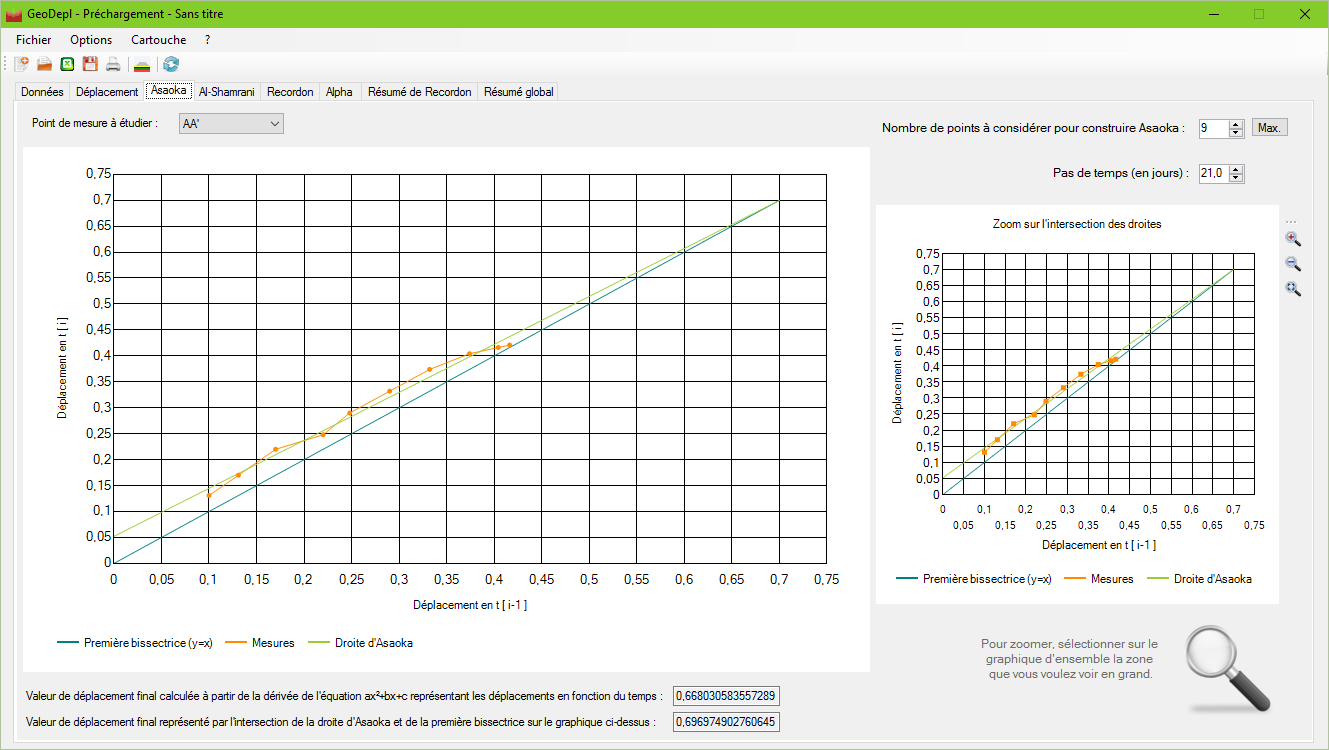

Asaoka method, tracing the displacement at a given time according to the displacement at the previous instant, with a recalculation according to a constant time step,

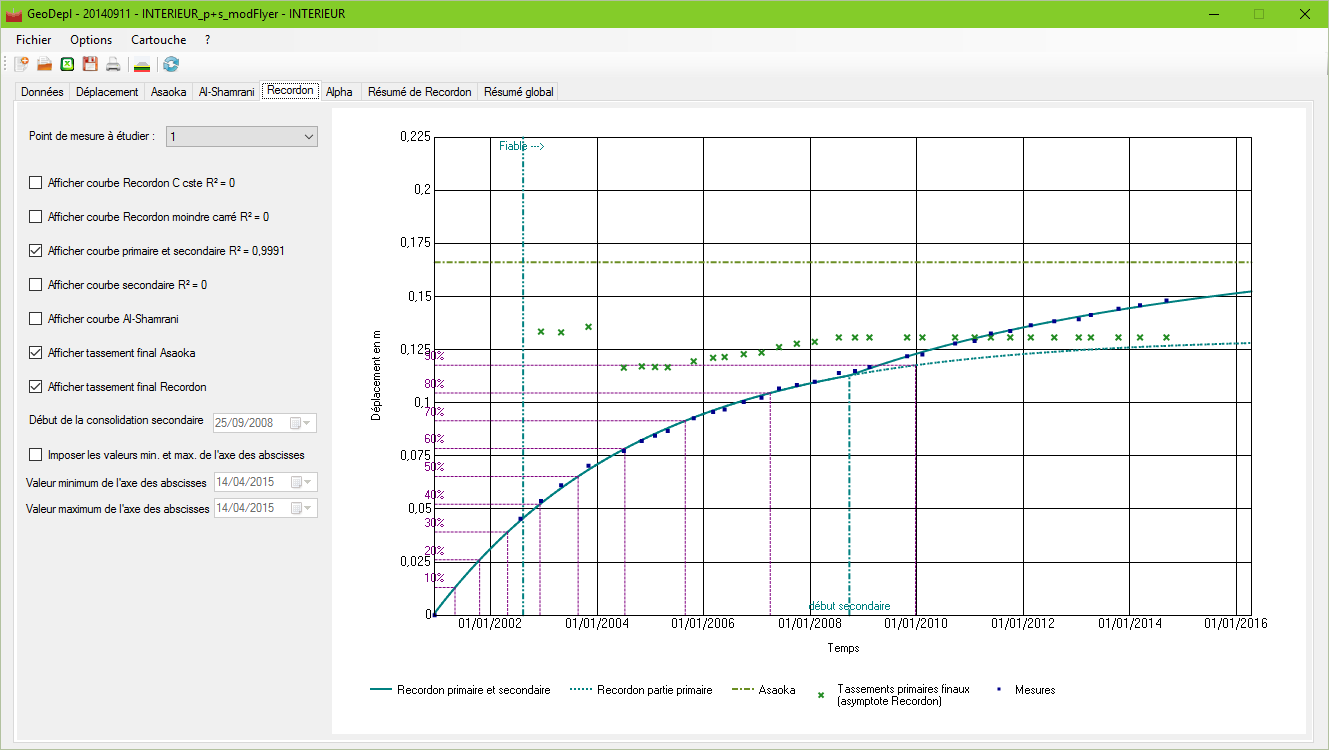

Recordon method, which seeks an exponential law of settlement as a function of time,
Al-Shamrani method, which seeks a hyperbolic law of settlement as a function of time,

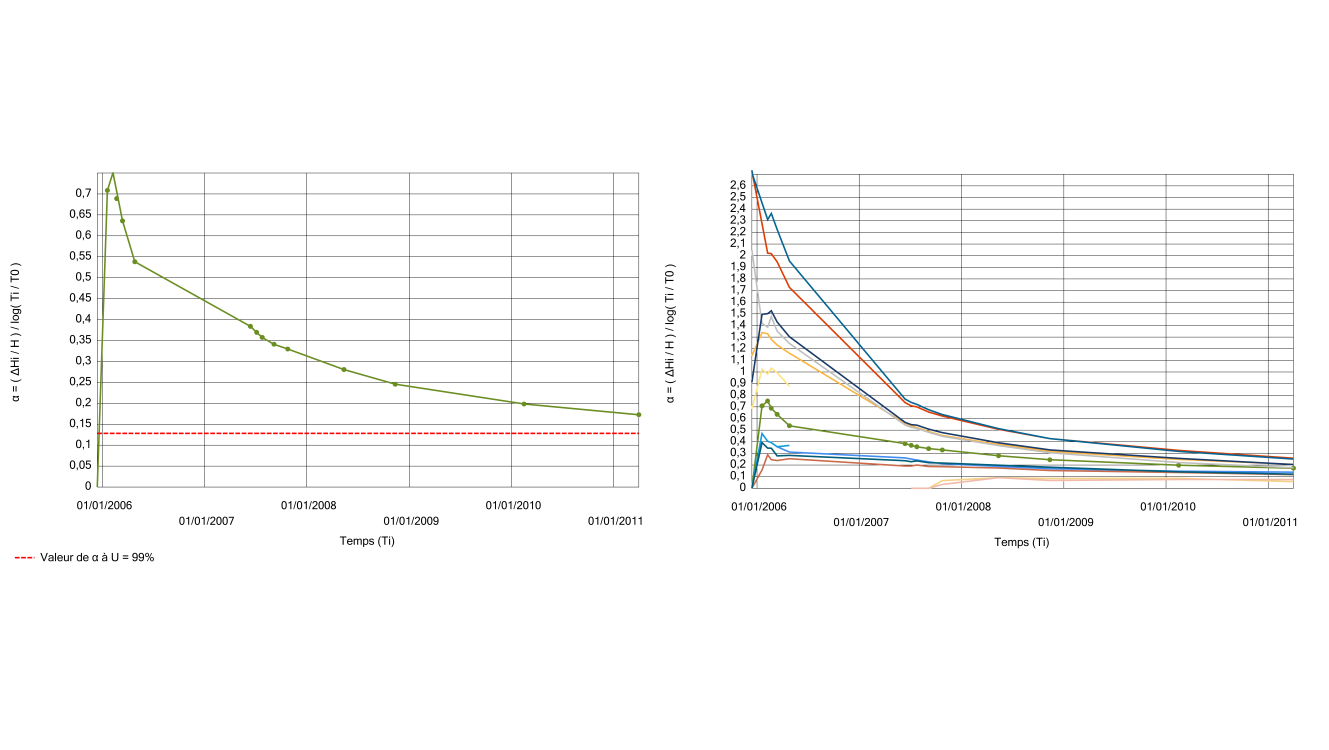

Plot of the evolution of an alpha coefficient, proportional to Cα, whose shape of the curve gives the influence of secondary settlement.

.

Client since 2006, Fondaconseil, with 35 years of experience, specializes in soil analysis, geotechnical analysis and consulting.

Client since 2013, KELLER is a world renowned office designing and implementing economical and innovativefoundation solutions.

This link allows you to download the latest version of GEODEPL 2015:

Try the trial version, allowing you to complete and unlimited use GEOMUR for 10 days. So you see for yourself the relevance of GEOMUR to your geotechnical projects
Full version if you already have a protection key
